2011 Sport-Bike Benelli Tornado Tre 1130
2011 Sport-Bike Benelli Tornado Tre 1130 frame has been completely revised to meet the new power and torque characteristic of the engine, without loosing any input from the original Tornado project. Some small improvements,for example the welding system and tube assembly in frame are now more accurate.
2011 Sport-Bike Benelli Tornado Tre 1130 Specification
Engine
2011 Sport-Bike Benelli Tornado Tre 1130 Engine Type use DOHC, 12 valves, in line triple, with liquid cooled. Displacement is 1130 cc, with Bore and Stroke 88 x 62 mm, and Compression Ratio 12.5 : 1. Horsepower up to 120 kW (161 cv) @ 10500 rpm, and Torque up to 124 Nm (12.7 kgm) @ 8000 rpm. Gearbox use 6 number of speed cassette type. Final Drive use 525 x-ring chain, with engine sprocket Z-16, and chain sprocket Z-36. Starting System use Electric Starter. Ignition System use Digital – inductive type via electronic engine management. Lubrication System use Wet sump. Clutch use Dry slipper clutch system.
Braking System and Suspension

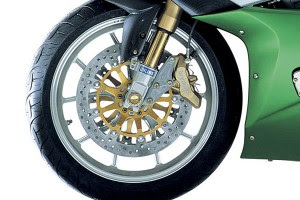

2011 Sport-Bike Benelli Tornado Tre 1130 Front Brake use dual floating disc with 4 piston Brembo calipers, and diameter disc use 320 mm. Rear Brake use fixed disc with 2 piston Brembo caliper, and diameter disc use 240 mm. 2011 Sport-Bike Benelli Tornado Tre 1130 Front Suspension use Fully adjustable 50mm inverted Marzocchi forks, with 4.72” travel. Rear Suspension use Fully adjustable Extreme Technology single shock, with 4.72” travel. 2011 Sport-Bike Benelli Tornado Tre 1130 Front Tire use 120-70 / 17, and Rear Tire use 190-50/17.
Components
Fuel tank capacity 17 litres. All parts of the 2011 Sport-Bike Benelli Tornado Tre 1130 are of the very best quality available.
